Hose Kits

Hose kits/Lead-through sets for connecting separate filters and heaters to Kirami hot tubs.

Filter_PlasticTub

You can purchase additional hoses and other equipment from us.

Use the lead-through set to connect filter units to Kirami hot tubs with wood-heated stoves (38mm).

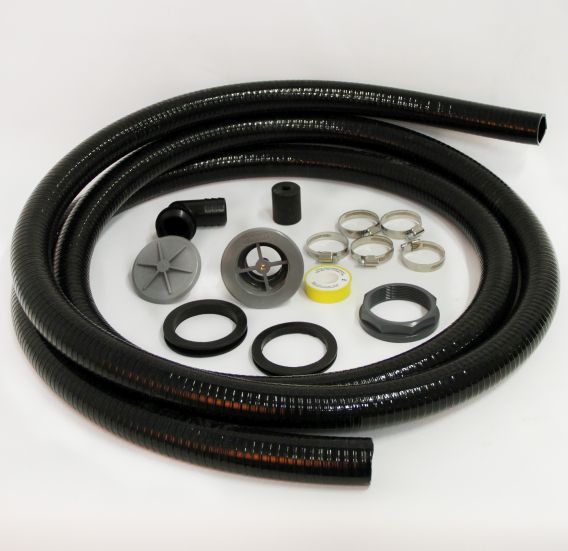

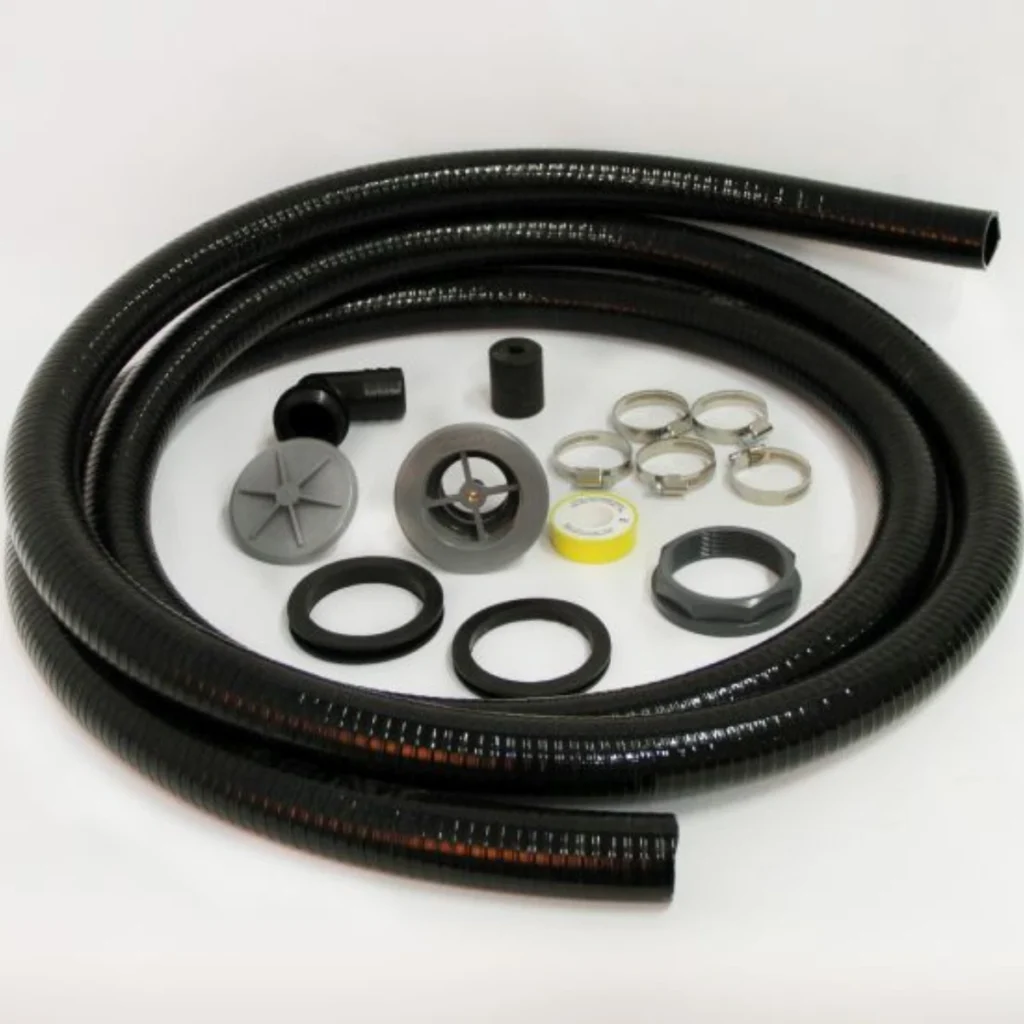

Kit contents:

• Lead-in 2½”outer thread x 1½”inner thread (M6 for inner thread plug)
• Gaskets, 3mm and 8mm to the wall
• Nut 2½” inner thread
• 3 pcs protection grid for inlets/outlets in the tub
• 3 pcs M6 bolts for grill installation

The above will be installed to the barrel, in case the filter is purchased at the same time with the barrel.

• 1 pcs 1 1/2”uk/38mm hose coupling 90 degrees
• Pipe tape roll
• Pipe 5m (in one piece, the colour may vary)
• A short discharge plug and lock bolt for discharge.
• Lead-in plug M6 outer thread

Filter_WoodyTub

You can purchase additional hoses and other equipment from us.

Use the lead-through set to connect filter units to Kirami hot tubs with wood-heated stoves (38mm).

The lead-through series of a wooden tub includes the following parts:

• 1 pc T-piece 1 ½” id x 1 ½” od x 1 ½” id
• 1 pc hose connector 1 ½” od / 38mm
• 3 pcs hose connector 90 degrees 1 ½” od x 38mm
• 7 pcs Hose clamp 32-50mm
• Pipe tape roll
• Hose 38mm inner diameter, 5m (in one piece and the colour may vary)

Lead-throughs are already installed to a hot tub.

For more information, Kirami.

• Instructions for installation and use.
