Harvia Linear 16
Linear 16 is a sturdy sauna stove with fresh design

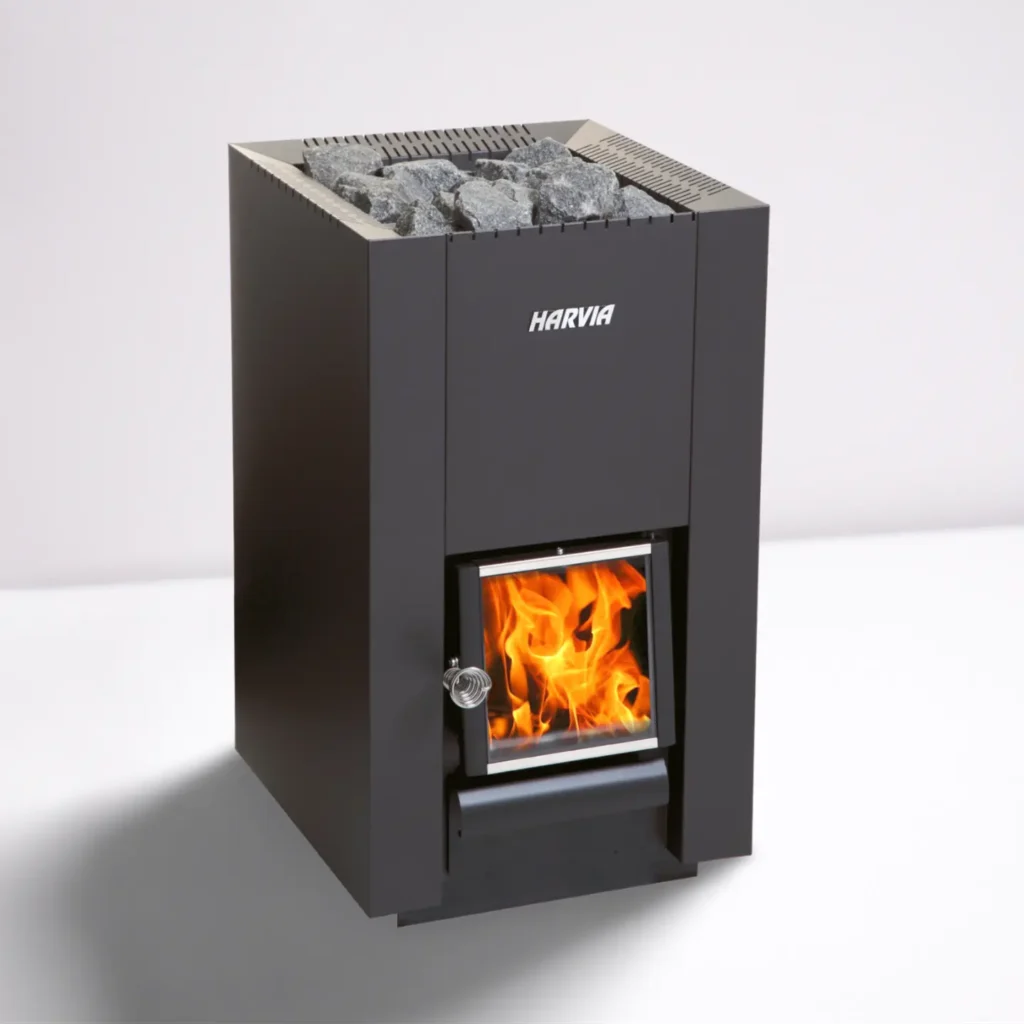

Harvia Linear 16 woodburning sauna stove is a source of glowing heat and magnificent bath for small saunas. The simple, sculptural design adds timeless style to the sauna. Through the cast-iron glass door the warm glow of the fire adds to the sauna atmosphere. The opening direction of the door can be changed.
The fire chamber and combustion air channels of Harvia stoves are designed so that sauna warms quickly and the burning is cleaner. The stoves meet the requirements for CE-marking.
The recommended size of the sauna room is 6–16 m3 and the maximum amount of stones is 36 kg.
| Model | WK160C |
| Sauna room min. m3 | 6 |
| Sauna room max. m3 | 16 |
| Stone capacity max. kg | 36 |
| Dimensions width mm | 420 |
| Dimensions height mm | 735 |
| Dimensions depth mm | 450 |
| Weight kg | 46 |
| Heater output kW | 17,9 |

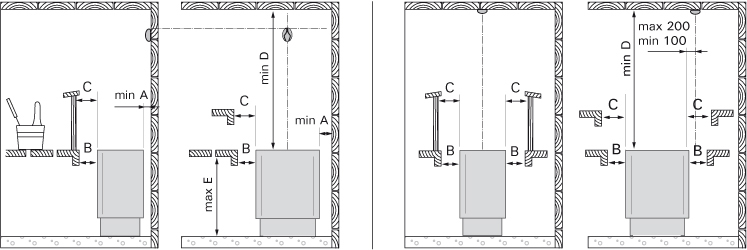

| Safety distance to sides and back, masonry walls E, mm | 50 |
| Safety distance to sides (B), walls and benches made of inflammable materials, mm | 300 |
| Safety distance to back (C), walls and benches made of inflammable materials, mm | 350 |
| Safety distance to front (D) mm | 400 |
| Safety distance from upper surface to ceiling A min. mm | 1300 |
| Fire chamber cover mm | 5 |
| Location of smoke outlets at rear: from floor to centre of hole mm | 560 |
| Location of smoke outlets on top: from rear edge to centre of hole mm | 130 |
| Upper connection opening, location from floor mm | 635 |
| Diameter of smoke outlet mm | 115 |
| Leave 50 mm between the stove and walls, provided that the air can circulate in front and to one side of the stove. If the stove is installed in a recessed wall, leave 100 mm between the stove and walls for the air circulation. |
Read and follow at all times the Harvia Installation instructions
| Weight | 109 lbs |
|---|---|
| Dimensions | 18 × 20 × 31 in |
