Harvia Steel Chimney Assembly Kit [Barrel Format Only]
In stock
Harvia Steel Chimney Assembly Kit [Barrel Format Only]
In stock
-
The Harvia Barrel Sauna Chimney Assembly Kit (WHP-ASBS) includes all the essential parts needed to safely install your Harvia steel chimney through the curved roof of a barrel sauna.

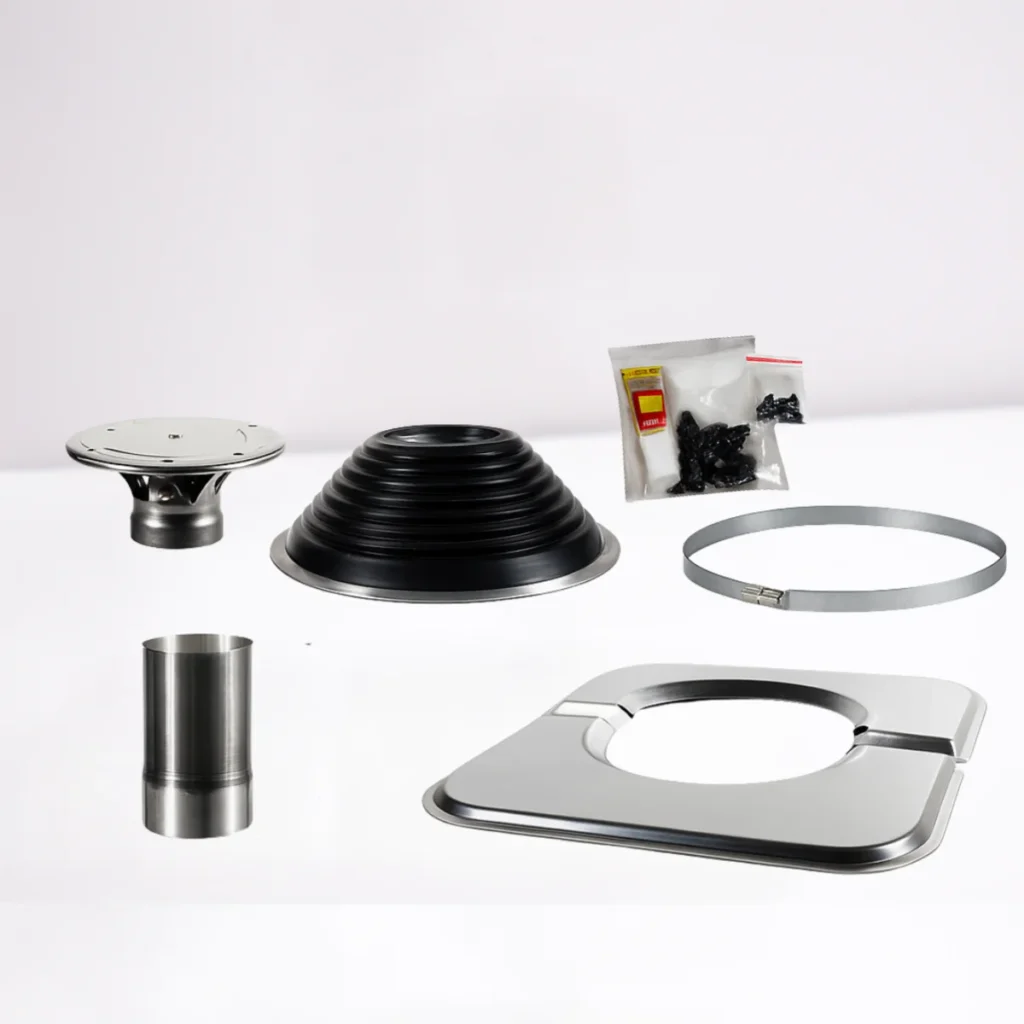

The kit includes a shorter non-insulated smoke pipe (0.2 m), a rain cap, a rubber rain flange with installation set, a stainless steel ceiling lead-through flange, and a lead-through insulation and protector.
This kit is designed specifically for the unique curved roof of barrel saunas, ensuring a tight, weather-resistant, and durable installation.
⚠️ Important: This kit does not include the chimney pipe.
To complete your sauna chimney system, you’ll need to purchase at least one Harvia chimney pipe (1.0 m or 1.5 m).
Read MoreTo complete your sauna chimney system, you’ll need to purchase at least one Harvia chimney pipe (1.0 m or 1.5 m).
$445.95
Harvia Steel Chimney Assembly Kit [Barrel Format Only]
Details
Description
Harvia Steel Chimney Assembly Kit [Barrel Format Only]
The Harvia Barrel Sauna Chimney Assembly Kit (WHP-ASBS) includes all the essential parts needed to safely install your Harvia steel chimney through the curved roof of a barrel sauna.
The kit includes a shorter non-insulated smoke pipe (0.2 m), a rain cap, a rubber rain flange with installation set, a stainless steel ceiling lead-through flange, and a lead-through insulation and protector.
This kit is designed specifically for the unique curved roof of barrel saunas, ensuring a tight, weather-resistant, and durable installation.
⚠️ Important: This kit does not include the chimney pipe.
To complete your sauna chimney system, you’ll need to purchase at least one Harvia chimney pipe (1.0 m or 1.5 m).
To complete your sauna chimney system, you’ll need to purchase at least one Harvia chimney pipe (1.0 m or 1.5 m).
Technical Information
A – 0.2 m Non-Insulated Smoke Pipe
Connects your sauna stove to the start of the insulated chimney. The shorter pipe is designed for barrel saunas so the chimney can pass through the curved roof properly.
B – Stainless Steel Ceiling Lead-Through Flange
Reinforces and protects the spot where the chimney passes through the roof. It also gives the installation a clean, finished look.
C – Rubber Rain Flange
Flexible seal that sits on the curved roof of your barrel sauna. Keeps rainwater from leaking in around the chimney.
D – Fastening Clamp
Secures the rubber rain flange tightly in place for a watertight and weatherproof fit.
E – Silicone Sealant Tube
Used to seal the joints and flange edges, ensuring the installation is airtight and resistant to water.
F – Installation Set (Screws & Fasteners)
All the screws and fixings needed to attach and secure the kit parts for a safe, durable installation.
Installation Instructions
Read and follow at all times the Harvia Instructions for installation and use.
Required for this product
Additional information
⚠️ Note: This product may not meet all building codes or regulations in North America.
Please check local laws and installation requirements before purchasing or installing.
| Weight | 26.24 lbs |
|---|---|
| Dimensions | 10.04 × 17.32 in |
