SKU: WHP-ASM
Harvia Black Steel Chimney Assembly Kit

In stock

-

⚠ Shipping Notice:
This product cannot be shipped on their own. They can only be shipped together with a heater/stove or are available for pickup in our store.

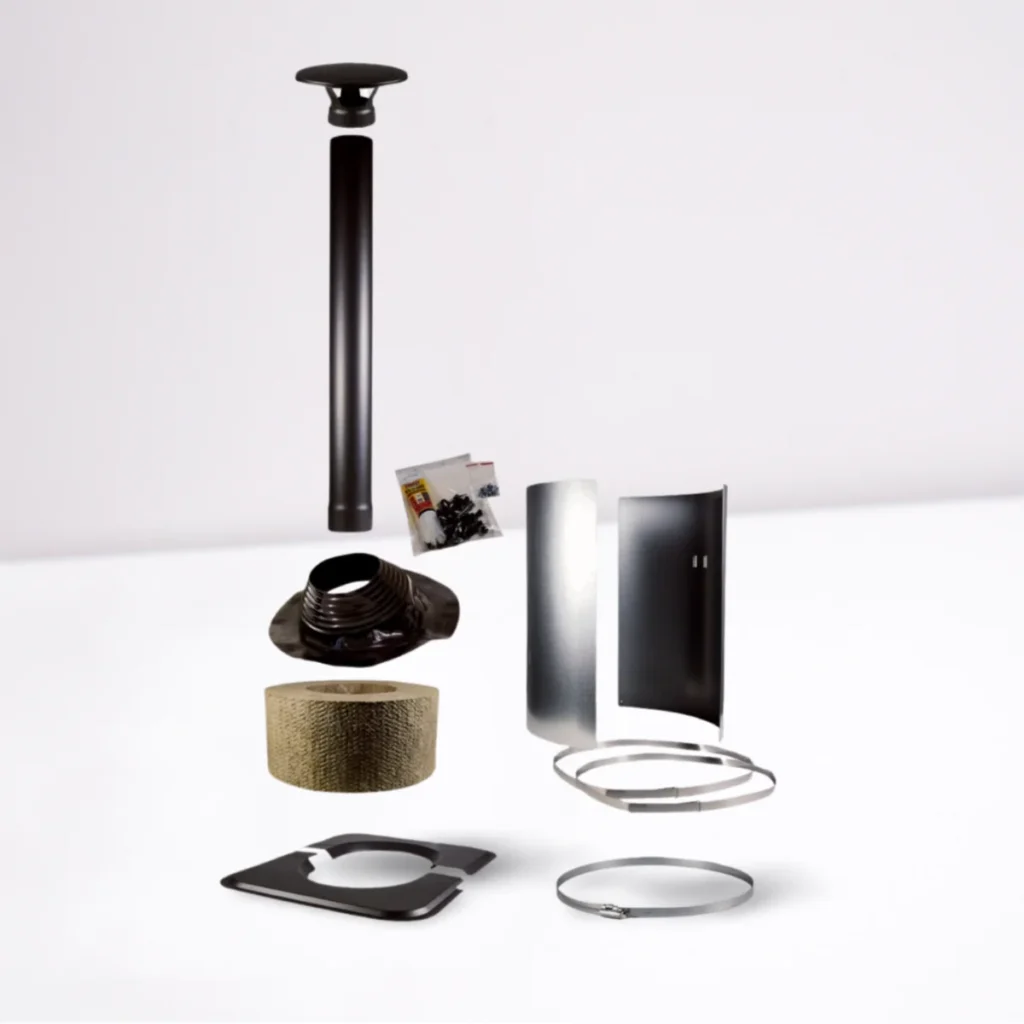

The Harvia Black chimney assembly kit contains all the essential parts required to safely install your Harvia chimney through your sauna.

The kit includes a non-insulated smoke pipe, a rain cap, a rubber rain flange with installation set, a ceiling lead-through flange, and a lead-through insulation and protector.

This kit provides the necessary sealing, fastening, and weather protection for a safe and durable installation. It is designed to work with Harvia’s 1.0 m and 1.5 m black chimney pipes (sold separately).

⚠️ Important: This kit does not include the chimney pipe.
To complete your sauna chimney system, you’ll need to purchase at least one Harvia black chimney pipe (1.0 m or 1.5 m).
Read More

$587.95

Please read warranty disclaimer before purchasing this product.
WHP1000500M
Black Steel Chimney Without Accessory Kit (1.5m)
-
+
$829.95
Black Steel Chimney Extension WHP1000M
Black Steel Chimney Extension (1m)
-
+
$531.95
Share on

Harvia Black Steel Chimney Assembly Kit

Details

Description

Harvia Black Chimney Assembly Kit

The Harvia black chimney assembly kit contains all the essential parts required to safely install your Harvia chimney through your sauna.

The kit includes a non-insulated smoke pipe, a rain cap, a rubber rain flange with installation set, a ceiling lead-through flange, and a lead-through insulation and protector. This kit provides the necessary sealing, fastening, and weather protection for a safe and durable installation.

It is designed to work with Harvia’s 1.0 m and 1.5 m black chimney pipes (sold separately).

Technical Information

This assembly kit includes all the parts required to safely install your Harvia chimney through a ceiling and roof. Below is a breakdown of each included component in this assembly kit

WHP-ASM Assembly Kit

  • A. Rain Cap
    Prevents rain, snow, and debris from entering the chimney. Protects your sauna and keeps the chimney draft stable.
  • B. Clamp Ring
    Secures the chimney sections together tightly, ensuring stability and safety even with heat expansion.
  • C. Rubber Rain Flange with Installation Set
    Provides a watertight seal where the chimney exits through the roof. Flexible rubber adapts to roof slopes and prevents leaks.
  • D. Lead-Through Insulation & Protector
    Fire-safe insulation sleeve and protective cover for where the chimney passes through the ceiling and roof structure. Prevents overheating of surrounding building materials.
  • E. Ceiling Lead-Through Flange
    Decorative and protective flange that covers the hole in the ceiling where the chimney passes through. Creates a clean and safe finish inside your sauna.
  • F. Non-Insulated Smoke Pipe
    The first section of chimney pipe that connects directly to your sauna stove. It runs inside the sauna room and links the stove’s flue collar to the start of the insulated chimney section.
⚠️ Important: This kit does not include the chimney pipe.
To complete your sauna chimney system, you’ll need to purchase at least one Harvia black chimney pipe (1.0 m or 1.5 m).

Installation Instructions

Read and follow at all times the Harvia Instructions for installation and use.

Required for this product

Additional information

Net Weight (kg) 11.1 kg
Product height  1020 mm
Product Width 255 mm
Product Depth 440 mm

⚠️ Note: This product may not meet all building codes or regulations in North America.
Please check local laws and installation requirements before purchasing or installing.

Weight 26.24 lbs
Dimensions 10.04 × 17.32 in
